Cytotoxicity Testing for Medical Devices Explained

Cytotoxicity testing is the first—and most fundamental—step in evaluating whether a medical device is safe for human use. It's a lab-based (in vitro) biocompatibility test that checks if the device's materials are toxic to living cells. Think of it as an essential early warning system to catch harmful materials long before a device gets anywhere near a patient.

Why Cytotoxicity Testing Is Your First Safety Check

Imagine you're building a house. Before you even think about the floor plan or the color of the walls, you have to be absolutely sure the foundation is solid. A crack in the foundation compromises everything built on top of it. Cytotoxicity testing is that foundational safety check for your medical device.

The Essential Safety Screen

This test is your first line of defense. Its entire purpose is to see if any materials, chemicals, or even residues left over from manufacturing could leach out and harm or kill human cells. If a material proves to be cytotoxic, it has the potential to cause cell death. In a real-world scenario, that could lead to inflammation, severe tissue damage, or outright device failure once it's in the body.

By spotting potential toxicity at the cellular level, you can prevent serious patient safety issues down the road. It's a non-negotiable checkpoint that weeds out unsuitable materials early, saving a massive amount of time, money, and rework.

This process isn't just a good idea; it's a global standard. Cytotoxicity testing is a core requirement for biocompatibility under ISO 10993-5, a standard recognized by regulatory bodies everywhere, including the FDA. This specific standard lays out the rules for assessing how device materials affect mammalian cells in vitro, giving you critical safety data before you even think about clinical use.

Setting the Stage for Full Biocompatibility

Let's be clear: passing a cytotoxicity test doesn't automatically mean your device is 100% biocompatible. But failing one is an immediate, glaring red flag.

This initial screen sets the stage for every other biological evaluation you'll need to perform. A clean cytotoxicity report gives you the confidence—and the justification—to proceed with more complex and expensive testing.

Here’s a look at the official standard itself, ISO 10993-5, which details the requirements for these critical tests.

The image shows the official title and status of the standard, highlighting its role as the definitive guide for in vitro cytotoxicity testing. Navigating these standards requires real expertise, which is why many companies partner with specialized labs. You can see how experts at Nelson Labs handle these precise protocols.

Ultimately, this test is the bedrock of patient safety. It’s the first step in ensuring that the very devices designed to heal don't end up causing harm.

Diving into the ISO 10993-5 Framework

If cytotoxicity testing is the first safety hurdle for a medical device, then ISO 10993-5 is the official rulebook that tells you exactly how to jump over it. This standard is the globally recognized blueprint for in vitro biocompatibility, creating a consistent and reliable process that regulators from the FDA to European authorities know and trust.

At its core, the standard is all about 'in vitro' testing. This simply means the entire test happens outside a living organism—usually in a petri dish with a layer of living cells. It's a smart, efficient first step that lets us screen for toxic red flags without immediately turning to more complex and expensive animal (in vivo) studies. This approach gets manufacturers clear, essential safety data, and fast.

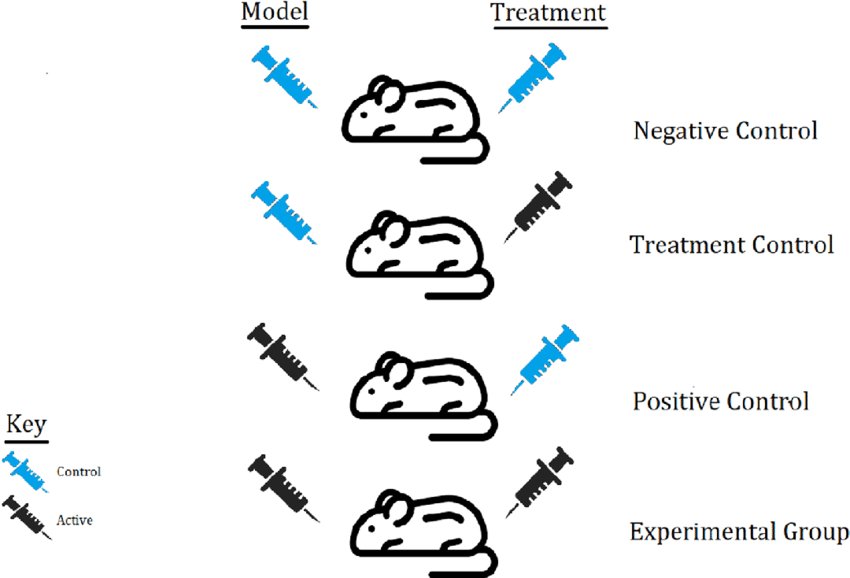

The Critical Role of Controls and Cell Lines

To make sure the test results are trustworthy, ISO 10993-5 demands a bulletproof system of checks and balances. The most important of these are the positive and negative controls.

• Negative Control: This is a material we know is completely harmless to cells, like a specific type of plastic (high-density polyethylene). It shows the lab what a healthy, thriving cell culture looks like, setting the benchmark for a 100% "pass."

• Positive Control: On the flip side, this is a material known to be highly toxic (like organotin-stabilized PVC). It’s designed to kill the cells, confirming that the test system is sensitive enough to detect a problem if one exists.

Think of these controls as the goalposts. If the negative control thrives and the positive control dies, you know the test was run correctly and the results are valid. The standard also requires the use of specific, well-understood cell lines. L929 mouse fibroblast cells are a common choice because they are robust yet sensitive to toxic materials, making them a reliable biological alarm system.

The infographic below shows how a device sample is graded against these all-important controls.

Why This Framework Is Not Optional

Following the ISO 10993-5 framework isn't just a good idea—it's a fundamental requirement for almost any medical device that touches the human body. From a simple bandage to a permanent heart valve, this test is the first piece of biocompatibility evidence that regulators will want to see.

Key Takeaway: ISO 10993-5 provides a clear, repeatable, and globally accepted pathway for proving a device material is not harmful at a cellular level. It’s the foundation of any successful regulatory submission.

The standard also gets into the nitty-gritty of how to prepare the device for testing. It outlines specific procedures for soaking the device to create an "extract"—a liquid containing any chemicals that might leach out. The duration of this extraction process is tailored to the device's intended use, typically running from 24 hours for short-term devices up to 72 hours for permanent implants. This step is crucial for mimicking the real-world exposure a patient might face.

For complex devices, navigating these requirements can be tricky. This is where a specialized testing partner can make all the difference, and many device makers explore CROs like Proxima to manage their testing needs. Ultimately, this rigorous framework does two things: it protects patients from harm and gives innovators a clear roadmap for proving their device is safe.

Choosing the Right Cytotoxicity Test Method

Picking the right cytotoxicity test for a medical device isn't a simple plug-and-play decision. It’s more like a physician choosing a diagnostic tool—you need the right instrument for the specific situation. The go-to standard, ISO 10993-5, lays out three primary methods, each with its own strengths.

The best choice hinges on a few key factors: the physical nature of your device, how it will be used in the body, and what kind of toxicological data you're trying to capture. Getting a handle on how the Elution, Direct Contact, and Agar Overlay tests work is the first step toward building a solid, compliant biocompatibility profile.

Let's break down each of these foundational methods.

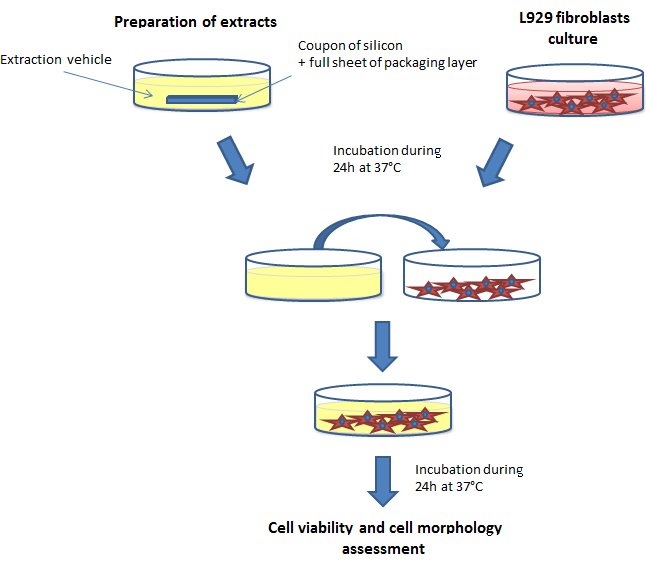

The Elution Test (Extract Method)

Think of the Elution test like brewing a cup of tea. When you steep a tea bag, the hot water extracts the flavors, colors, and compounds from the tea leaves. The Elution test works on the same principle. We take a sample of the medical device material and soak it in a liquid medium, typically for 24 to 72 hours.

This process is designed to "pull out"—or elute—any chemicals that might leach from the material over time. Once we have this liquid extract, we introduce it to a culture of living cells and watch to see how they respond.

This is by far the most common and versatile method, and for good reason. It’s perfect for:

• High-Density Devices: It’s a great fit for materials you can't just place on top of cells, like powders, gels, or dense implants.

• Complex Shapes: The method works perfectly for devices with irregular geometries that won’t sit flat in a petri dish.

• Dose-Response Analysis: By preparing extracts at different concentrations, we can pinpoint the exact threshold at which a material becomes toxic. This is crucial for risk assessment.

Because of its flexibility, the Elution test is the standard choice for everything from injectable drugs and absorbable sutures to implantable screws and plates.

The Direct Contact Method

The Direct Contact method is exactly what it sounds like. We take a small, sterile piece of the device material and place it right on top of a living layer of cells (usually L929 mouse fibroblasts). It’s a very direct and intuitive way to assess biocompatibility.

Think of it like laying a piece of plastic wrap over a patch of wet grass. You can see precisely how the grass underneath is affected by the direct contact. We do the same thing here, incubating the material with the cells for at least 24 hours and observing the "zone of contact" for any signs of distress or cell death.

This method gives a crystal-clear, visual answer to the question: "What happens when living cells physically touch this material?" It excels at showing localized toxic effects.

Its main limitation is that it's only suitable for low-density, flat materials. You can't use it for liquids, powders, or dense objects that would physically crush the cell layer. It’s best suited for things like wound dressings, contact lenses, or the surfaces of catheters—devices that make direct, sustained contact with tissue.

The Agar Overlay Method

The Agar Overlay test is a clever hybrid that bridges the gap between the other two methods. Here, we first cover the cell layer with a thin, semi-solid blanket of nutrient-rich agar. This gel acts as a buffer layer.

The device sample is then placed on top of the agar. The real test is to see if any leachable chemicals can diffuse through the agar and reach the cells below. This process mimics how a toxic substance might travel through bodily fluids or tissue to affect cells that aren't in direct contact with the device itself.

This technique is especially valuable for:

• Detecting Diffusible Toxins: It’s the best way to identify leachable chemicals that can travel a short distance to cause harm.

• Testing Polymers and Elastomers: It's a popular choice for materials like dental composites or certain types of rubbers where leachable monomers or additives are a known concern.

After the incubation period, a special dye is added that stains living cells red. Any toxic leachables will create a clear, colorless zone of dead cells under and around the material sample, giving us an unmistakable visual indicator of toxicity.

Comparing the Three Main Cytotoxicity Testing Methods

To make the choice clearer, let's look at these three core methods side-by-side. Each is designed to answer a slightly different question about your device's biocompatibility.

Ultimately, understanding the nuances of these three tests—what they do, how they work, and when to use them—is foundational for any medical device manufacturer. Partnering with an experienced lab can help you select the most appropriate method to generate the precise data needed for regulatory approval.

How to Interpret Your Test Results

Getting that lab report back can feel like trying to solve a puzzle. It's a page full of numbers, grades, and technical jargon that holds the fate of your medical device. But figuring out what your cytotoxicity test results actually mean doesn’t have to be intimidating. It’s all about knowing what to look for.

Whether your results are qualitative (based on visual observation) or quantitative (based on a numerical measurement), the fundamental question is the same: is your device material safe for living cells? Let's break down how to read both types of reports.

The Qualitative Grading Scale Explained

Many cytotoxicity tests, especially the Direct Contact and Agar Overlay methods, are graded by a biologist looking through a microscope. They’ve exposed a layer of living cells to your device material and are now assessing the aftermath. They’re looking for signs of cellular stress, damage, or death, and they assign a grade based on what they see.

It's usually scored on a simple 0-to-4 scale:

• Grade 0 (No Reactivity): This is the best-case scenario. The cells look perfectly healthy, just like the untouched control group. A clear pass.

• Grade 1 (Slight Reactivity): A few cells might look a little stressed, but the overall cell layer is healthy and thriving. This is also considered a pass.

• Grade 2 (Mild Reactivity): You can see some cell damage, but less than 50% of the cell population is affected. Under ISO 10993-5, this is still a passing result.

• Grade 3 (Moderate Reactivity): Now we have a problem. There's significant, widespread cell damage. This is a clear failure.

• Grade 4 (Severe Reactivity): It's a worst-case scenario. Almost all the cells in the culture have been destroyed. This is a definitive cytotoxic failure.

Think of it as a cellular damage report. Grades 0, 1, and 2 mean you're in the clear. Anything higher is a major red flag that you have a toxicity problem to solve.

Understanding Quantitative Results Like the MTT Assay

The Elution test, on the other hand, often gives you a precise number to work with, typically through a method like the MTT assay. Instead of just looking at the cells, this test measures their metabolic activity—a direct indicator of their health.

Here’s how it works: healthy, living cells take a yellow dye (MTT) and convert it into a vibrant purple crystal. The more purple the sample turns, the more healthy, metabolically active cells are present. A lab instrument then measures the intensity of that purple color to calculate the percentage of living cells compared to the control group.

This gives you a hard number called cell viability.

The magic number in cytotoxicity testing is 70%. According to ISO 10993-5, if your device material causes cell viability to drop below 70% of the control, it is considered to have a cytotoxic effect.

This 70% threshold is the industry-wide line in the sand. A result of 85% viability is a great pass. But a result of 65% means you’ve failed.

What Happens If Your Device Fails the Test

Seeing a "FAIL" on that report is a tough moment, but it's not the end of the road. It’s a crucial piece of data telling you that something—be it a raw material, a processing aid, or a sterilization residual—is toxic to cells.

The first step is to confirm it wasn't a fluke or a lab error. Once the failure is confirmed, it's time to put on your detective hat and start a root cause investigation.

Here’s a good way to approach it:

1. Analyze the Material: Go back to the full formulation of the material. Does it contain any known culprits, like certain plasticizers, heavy metals, or uncured monomers?

2. Examine the Manufacturing Process: Could a cleaning agent, lubricant, or mold release compound be leaving behind a toxic residue? Sometimes the problem isn't the material itself, but what it touched during production.

3. Check Sterilization: If you used Ethylene Oxide (EtO), were the residuals properly aired out? Incomplete aeration is a very common reason for cytotoxicity failures.

4. Reformulate or Remediate: Once you've pinpointed the likely cause, you have to fix it. That might mean switching to a different medical-grade polymer, improving your cleaning protocols, or extending your EtO aeration cycle.

After you've made the changes, you’ll need to re-test the device to prove the problem is gone. A failure is frustrating, for sure, but it’s a necessary hurdle that protects patients and ultimately leads to a safer, better product.

Common Pitfalls and How to Avoid Them

Even with a detailed roadmap like ISO 10993-5, cytotoxicity testing can be a tricky process. It’s surprisingly easy for a small mistake in how a sample is prepared or how a result is interpreted to cause a test failure. When that happens, you’re looking at expensive delays, frustrating investigations, and a major headache for your project timeline. Knowing where the landmines are is the best way to sidestep them.

The key is to treat your test sample with the exact same respect you give the final product. Simple oversights can introduce contaminants that have absolutely nothing to do with your material's actual safety, leading to a false positive and a whole lot of unnecessary trouble.

Pitfall 1: Inadequate Sample Preparation

One of the most common reasons a test fails has nothing to do with the device itself—it’s all about what happens before the sample ever sees a cell culture. Improper handling or incomplete documentation can torpedo your test right out of the gate.

Just think about it: the lab can only test the sample you provide. If that sample has picked up oils from someone's hands, residue from its packaging, or even lint from a cloth, the test will react to those things, not just your material.

To get it right, you need to:

• Submit the Real Deal: Your test sample should be the final, finished product, exactly as it would be shipped to a clinic. This means it must have gone through all manufacturing and sterilization steps.

• Handle with Care: Always use sterile gloves and tools when managing the test article. You want to prevent any outside contaminants from skewing the results.

• Provide the Full Story: Give the lab a complete "Test Item Characterization Sheet." This document should list every material, processing agent, and sterilization method involved, providing crucial context if any strange results pop up.

Pitfall 2: Mismatched Extraction Parameters

The Elution test, which is the go-to method for most devices, works by soaking the material to create a liquid extract. Choosing the right fluid (the "extraction vehicle") and the right amount of time is absolutely critical for mimicking how the device will behave in the human body. Get it wrong, and you might either fail to detect a real toxin or create a test so harsh it causes a failure that would never happen in reality.

For example, using a polar solvent on a non-polar material probably won't pull out the chemicals that could actually leach into the body's fatty tissues. Likewise, a 24-hour extraction might be fine for a device that only touches a patient for a few minutes, but it’s not nearly enough for a permanent implant. Those long-term devices need a 72-hour extraction to properly simulate years of exposure.

A failed test isn't just a data point; it's a signal that requires immediate and thorough investigation. Misinterpreting borderline results or ignoring subtle signs of toxicity can lead to much bigger regulatory challenges later on.

Pitfall 3: Misinterpreting Borderline Results

So, what do you do when cell viability comes back at 71%? Technically, that’s a pass, but it's sitting right on the edge of the 70% failure line. A huge mistake is to breathe a sigh of relief, file the report, and move on.

This is a gamble. A borderline result can suggest that your manufacturing process isn't perfectly consistent or that your material is just barely biocompatible. A sharp-eyed regulator will spot this and see it as a red flag, which often leads to requests for more data or a detailed justification.

Instead of just accepting the pass, a borderline result should trigger an immediate internal review. You should seriously consider re-running the test to confirm the result is repeatable and be sure to document a thorough risk assessment. This shows you're being proactive and have a firm handle on your device's safety profile.

Ultimately, your best bet is to work with an experienced testing lab that can help you navigate these issues. They can ensure your cytotoxicity testing for medical devices is accurate, compliant, and reliable from start to finish.

Connecting Your Test Data to Global Market Access

Let's be clear: a successful cytotoxicity test isn't just about getting a good lab result. It's your ticket to the global marketplace. A passing report, built on the back of ISO 10993-5, is the foundational proof of safety that regulators from the US to Europe to Asia are looking for. Without it, your journey to market launch stops dead in its tracks.

This test data becomes a critical piece of the puzzle in your pre-market submission package. When agencies like the U.S. FDA or European authorities under the MDR review your device, compliant cytotoxicity data is one of the very first things they check. It’s their initial litmus test to see if you've done your basic safety homework.

A clean, well-documented report shows that your device doesn't pose a threat at the most fundamental, cellular level. This doesn't just check a box; it builds confidence, reduces the back-and-forth questions from regulators, and can genuinely speed up your review and approval timeline.

Why Compliant Data is a Commercial Game-Changer

Think of your cytotoxicity test results as much more than a simple pass or fail. They are a strategic business asset. Strong, compliant data lets you push forward with your project, knowing you've cleared a major regulatory hurdle.

On the flip side, a failure or even a borderline result throws a wrench in the works. It triggers costly delays, forces you into time-consuming root cause investigations, and might even mean going back to the drawing board to reformulate materials.

Nailing this step right from the start is absolutely crucial. The impact on your budget and time-to-market is massive. This is precisely why so many device makers choose to work with partners who live and breathe regulatory strategy and testing. For example, the comprehensive services offered by Veranex are designed to help companies navigate these complex regulatory pathways, ensuring test data is perfectly aligned with what reviewers need to see.

In the medical device world, your regulatory submission is only as strong as the data behind it. Cytotoxicity testing provides the bedrock of that support, proving your commitment to patient safety long before your device ever reaches a hospital.

Market Growth and Stricter Standards

The need for robust cytotoxicity testing for medical devices isn't going away—in fact, it's growing more intense every year. As medical technology advances with new materials, complex coatings, and drug-device combination products, the level of regulatory scrutiny is rising right alongside it.

You can see this trend reflected in the market's own expansion. The global cytotoxicity testing market is booming, driven by a worldwide demand for safer, more biocompatible medical products. As of 2025, the market is valued at roughly USD 3.3 billion and is expected to grow at a Compound Annual Growth Rate (CAGR) of about 10.8% through 2033. This growth is a direct result of stricter requirements from bodies like the FDA and the EMA. You can dig deeper into this growing market at Data Insights Market.

The numbers send a clear message to manufacturers: investing in high-quality, compliant cytotoxicity testing isn't just another line-item expense. It is a fundamental cost of doing business in a global arena that puts patient safety above all else.

Common Questions About Cytotoxicity Testing

Getting into the nitty-gritty of biocompatibility testing often sparks a lot of questions. Let's tackle some of the most frequent ones that come up when preparing a medical device for cytotoxicity testing.

What Do I Do if My Device Fails a Test?

Seeing a "fail" on a cytotoxicity report can be alarming, but it’s not the end of the road. It’s a critical flag telling you something in your device might be harmful to cells, and it's time to play detective.

First things first: talk to your lab. You need to confirm the result wasn't just a fluke or a testing error. Once the failure is verified, the real investigation begins. You have to pinpoint the source of the toxicity. It could be anything from a raw material in your polymer blend to a subtle processing aid like a mold release agent or even a residual from the sterilization process. The fix usually involves reformulating a material, tweaking the manufacturing process, or beefing up your cleaning protocols to get rid of the problem component.

Does Every Single Medical Device Need This Test?

Not every device, but the vast majority do. If your device makes any kind of direct or indirect contact with a patient, cytotoxicity testing is almost always on the table.

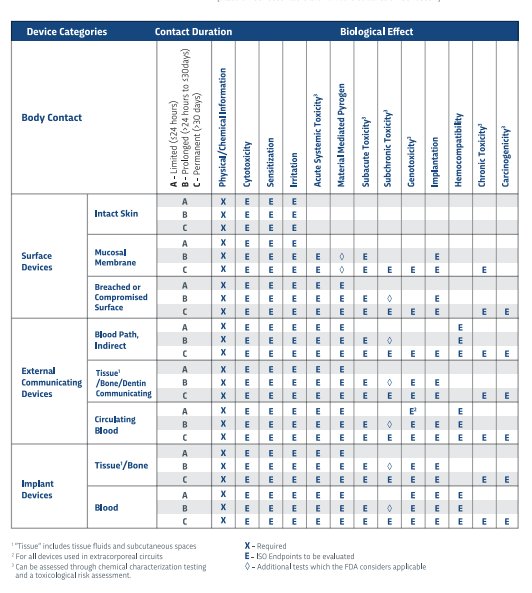

The official requirement comes from a risk assessment guided by ISO 10993-1. This standard helps you figure out the testing you need based on how the device touches the body and for how long.

Think about it: for things like implants, catheters, or any product that will spend significant time with tissue, blood, or mucous membranes, cytotoxicity testing is the non-negotiable first step. It's the baseline for proving your device is safe for patient use.

How Do I Pick the Right Testing Lab?

Choosing your lab partner is one of the most important decisions you'll make. Getting reliable, compliant results depends entirely on their expertise.

When you're vetting potential labs, look for a few key things:

• ISO/IEC 17025 Accreditation: This is the gold standard. It proves the lab has its quality systems and technical skills dialed in.

• Deep Medical Device Experience: Don't just ask if they can run the test. Ask if they have a long history with the ISO 10993 series and, ideally, with devices similar to yours.

• Clear Communication: A great lab partner acts like an extension of your team. They should be able to guide you on which test to choose, how to prep your samples, and what the results actually mean.

• Proven Regulatory Record: Check their track record. Have their test reports been successfully submitted to regulatory bodies like the FDA?

Finding the right lab or a specialized supplier can feel like searching for a needle in a haystack, but it's a vital part of getting your product to market. At MedtechVendors, we specialize in connecting medical device innovators with vetted, expert partners to help you move from concept to commercialization without the headaches. Find your ideal vendor today.
