A Guide to Medical Device Sterilization Validation

When we talk about medical device sterilization validation, we're talking about much more than just a regulatory hurdle. It’s the documented, scientific proof that your chosen sterilization method works—consistently, reliably, and without fail. This isn't just about ticking a box; it's a foundational requirement for patient safety, providing irrefutable evidence that a device is sterile and ready for the real world.

Why Sterilization Validation Is Non-Negotiable

Before any medical device can be cleared for use in a hospital or clinic, it has to pass a tough sterilization validation process. This isn't based on assumptions. It’s about generating hard data that proves your sterilization cycle is effective, time and time again.

Think about it: you can't test every single device for sterility without destroying it. So, validation is how you demonstrate absolute control over a process where the final outcome can't be directly inspected on every unit.

The entire concept is built on probability. You can't actually prove something is absolutely sterile. Instead, you demonstrate an incredibly high probability that no viable microorganisms are left. This is where the core principles of validation really come into play.

The Science Behind the Assurance

At the heart of every validation study is the Sterility Assurance Level (SAL). This is a term you'll see everywhere. It represents the statistical probability of a single viable microorganism surviving the sterilization process. For most medical devices, regulators mandate an SAL of 10⁻⁶.

What does that mean in plain English? A one-in-a-million chance of a non-sterile device slipping through.

To hit that target, you first have to know your starting point. That’s your bioburden—the actual population of living microorganisms on a device before it gets sterilized. A detailed bioburden assessment is the baseline that informs the entire design of your validation study.

Key Takeaway: Validation isn't just about killing microbes. It's about proving you can consistently achieve a one-in-a-million probability of sterility by understanding your device's initial microbial load and challenging your process to overcome it.

The validation itself involves documenting every single parameter with painstaking detail and running multiple successful cycles to prove the process is repeatable. This data is what regulatory bodies like the U.S. FDA and European notified bodies will pore over during their review.

For anyone new to this, it's helpful to see how the most common sterilization methods stack up. Each one comes with its own set of challenges and validation requirements.

Key Sterilization Methods at a Glance

This table gives a quick comparative overview of the sterilization methods you'll most often encounter for medical devices. Each has its own mechanism, best-fit applications, and specific points to consider during validation.

Choosing the right method is the first major decision, and as you can see, the validation pathway for each is quite different. The goal is to match the method to your device's materials and design while ensuring you can robustly validate it.

A Growing Market Driven by Safety and Regulation

The demand for solid validation isn't going away—it's growing. The global market for medical device sterilization validation services was recently valued at around USD 830 million and is expected to climb to USD 1.63 billion.

This growth isn't surprising. It’s being pushed by more complex medical devices, the relentless fight against hospital-acquired infections (HAIs), and tighter regulations worldwide. As technology advances, the methods we use to guarantee safety have to evolve right alongside it. You can discover more about these market trends and what’s driving them in the full report.

Now that you have a firm grasp on why this is so critical, we can dig into the "how." The next sections will break down the practical, hands-on steps for building and executing a sterilization validation plan that is scientifically sound, fully compliant, and, most importantly, keeps patients safe.

Developing a Bulletproof Validation Protocol

Everything in sterilization validation starts and ends with the protocol. This document is more than just a plan; it’s your scientific argument, your operational guide, and your defense in an audit, all rolled into one. I’ve seen countless projects get delayed because the protocol was vague or incomplete. It's a direct path to regulatory questions and, worse, potential patient safety risks.

Think of it like this: you wouldn't build a house without a detailed blueprint. The protocol serves that exact purpose for your validation study. It needs to meticulously spell out the who, what, where, when, and why before a single test is run. This foresight is what makes your results repeatable and defensible when an auditor comes knocking.

Defining Device Families and Worst-Case Scenarios

One of the first big hurdles is figuring out how to group your devices into logical families. Let’s be realistic—validating every single product variation is incredibly expensive and time-consuming. The good news is, you don’t have to. You can group products that are made of similar materials, have a similar construction, and are manufactured in the same way. This strategy is both efficient and scientifically sound.

Once your family is defined, you have to pinpoint the worst-case challenge device. This is the single product within that group that’s the absolute toughest to sterilize.

So, what makes a device a "worst-case" challenge? It usually comes down to a few key factors:

• Complex Geometries: Long, skinny lumens, mated surfaces, or complex internal channels are a sterilant's worst nightmare. It's incredibly difficult for Ethylene Oxide (EO) gas or steam to get into all those nooks and crannies.

• Material Density: Thicker, denser materials can block radiation, making it tough to deliver the required dose to the device's core.

• Device Mass: A heavier device can create "cold spots" in a steam autoclave by acting as a heat sink, preventing those areas from reaching sterilizing temperatures.

The beauty of this approach is that by successfully validating your most difficult device, you create a protective umbrella that covers every simpler product in that family. It saves an enormous amount of time and money.

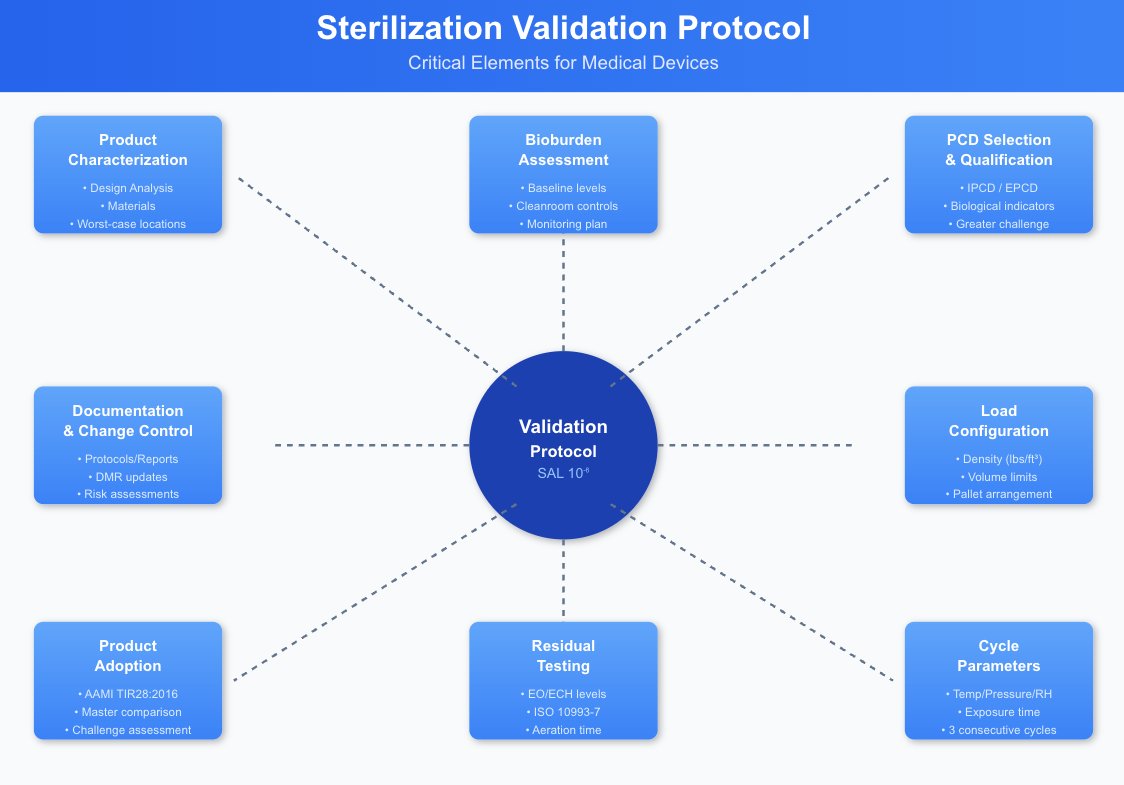

This infographic breaks down the basic workflow for getting these crucial protocol elements right.

This process gives you robust, defensible evidence that if you can sterilize the toughest product, you can confidently sterilize them all.

Selecting Indicators and Documenting Parameters

With your worst-case device chosen, the next question is: how will you prove the process actually worked? This is where Biological Indicators (BIs) and the Process Challenge Device (PCD) come in. A BI is a small strip or vial containing a massive population of highly resistant bacterial spores—usually Geobacillus stearothermophilus for steam or Bacillus atrophaeus for EO.

The PCD is simply your worst-case device with these BIs strategically placed in the locations that are most difficult for the sterilant to reach. For a complex surgical instrument, you might tuck a BI deep inside a narrow channel or bury it in the center of a dense component. The logic is simple: if you can kill those super-resilient spores in the hardest-to-reach spot, you can be certain the rest of the device is sterile.

Your validation protocol must explicitly state the type of BI, its spore population, its D-value (a measure of resistance), and the exact placement locations within the PCD. Ambiguity here is a red flag for auditors and one of the most common findings I see.

Finally, you have to nail down the cycle parameters. This is the operational recipe for the sterilization cycle itself. For every parameter, you need a specific setpoint and an acceptable range. For an Ethylene Oxide cycle, for example, your protocol has to specify:

• Preconditioning: Exact targets for temperature and relative humidity.

• Gas Exposure: EO gas concentration (e.g., 600 mg/L), exposure time (e.g., 4 hours), and chamber temperature.

• Aeration: The time and temperature required to safely remove residual EO gas.

Every single one of these variables needs to be defined in the protocol before you start. This ensures the process you validate is the same one you'll use day in and day out for routine production. Honestly, getting these details right is where partnering with an experienced lab becomes invaluable. You can find vetted lists of top-tier labs like Nelson Labs to help guide your protocol development. Collaboration like this builds your entire validation on a solid foundation of real-world expertise.

Putting IQ, OQ, and PQ to Work in the Real World

With a solid validation protocol in hand, it’s time to move from theory to action. This is where the rubber meets the road—executing the three core qualification phases: Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).

These aren't just bureaucratic steps to check off a list. They are the structured, evidence-gathering stages that prove your equipment and process work exactly as intended, every single time. Think of it like building a high-performance engine: IQ is checking that every bolt is tightened and every wire is connected correctly. OQ is revving that engine on the test bench to see if it performs under stress. And PQ? That's taking it out on the track for multiple races to prove it runs consistently lap after lap.

Installation Qualification: The Ground-Up Verification

The Installation Qualification (IQ) phase is all about confirming that your sterilization equipment is installed exactly according to the manufacturer's specifications and your own pre-defined requirements. It’s a meticulous, checklist-driven process that leaves no stone unturned. You're creating a documented record that the sterilizer, as it sits on your floor, is precisely what you ordered and is set up for success.

A common mistake I see is teams treating IQ as a quick sign-off exercise. It's so much more than that. It involves tangible verification of dozens of critical components:

• Utility Connections: Is the steam, water, air, and electrical supply exactly what the manufacturer requires? I once saw an OQ fail repeatedly because of poor steam quality—an issue a more thorough IQ would have caught early on.

• Component Verification: Are all pipes, valves, sensors, and gauges the correct model and material specified in the design documents? This means physically checking part numbers against purchase orders and prints.

• Software and Controls: Is the correct version of the control software installed? Are all alarms and interlocks functioning as they should? A simple software mismatch can derail the entire validation.

• Calibration Records: Every single critical instrument—thermocouples, pressure transducers, timers—must have a current, traceable calibration certificate. This is a huge point of scrutiny during any audit.

My Two Cents: Don't just accept the manufacturer's sign-off. Your quality team needs to independently verify every single item on the IQ checklist. This objective evidence is your first layer of proof that the system is ready for formal testing.

Operational Qualification: Pushing the System to Its Limits

Once you’ve proven the equipment is installed correctly, you move into Operational Qualification (OQ). The goal here is to demonstrate that the sterilizer can consistently operate within its pre-defined limits, creating the exact process conditions laid out in your protocol. This is where you really challenge the system.

For example, you might run "empty chamber" cycles to map temperature and pressure distribution without a load getting in the way. Then, you'll run cycles at the absolute upper and lower limits of your specified operating parameters—think minimum exposure time or lowest allowable temperature—to prove the process is robust.

You are effectively drawing a box around your operating window and proving that anywhere inside that box, the sterilizer performs reliably. This data provides the confidence that minor, real-world process fluctuations won’t compromise sterility. This phase is absolutely critical for establishing the operational ranges you will use for routine manufacturing.

Performance Qualification: Proving Consistency Under Real Conditions

Finally, Performance Qualification (PQ) is the ultimate test. Here, you demonstrate that your sterilization process consistently produces a sterile product under normal, real-world manufacturing conditions. This isn't a lab experiment anymore; you're using actual product loads, just as they will be run day-to-day.

The cornerstone of any PQ is running three consecutive, successful sterilization cycles using your "worst-case" PCDs. Success isn’t just about the physical parameters (temperature, pressure, time) being met. The real proof is that all your biological indicators show a complete kill. No exceptions.

If even one run fails, you have to investigate the root cause, document your findings, and restart the entire three-run series from the beginning. There's no "two out of three" in sterilization validation. This strict requirement ensures your process isn't just effective but also repeatable and reliable. It's the final piece of evidence that convinces regulators your process is under control.

Diving into the details of IQ, OQ, and PQ can feel overwhelming, but understanding the distinct role of each phase is key. Here's a quick breakdown to help clarify the purpose and deliverables for each stage.

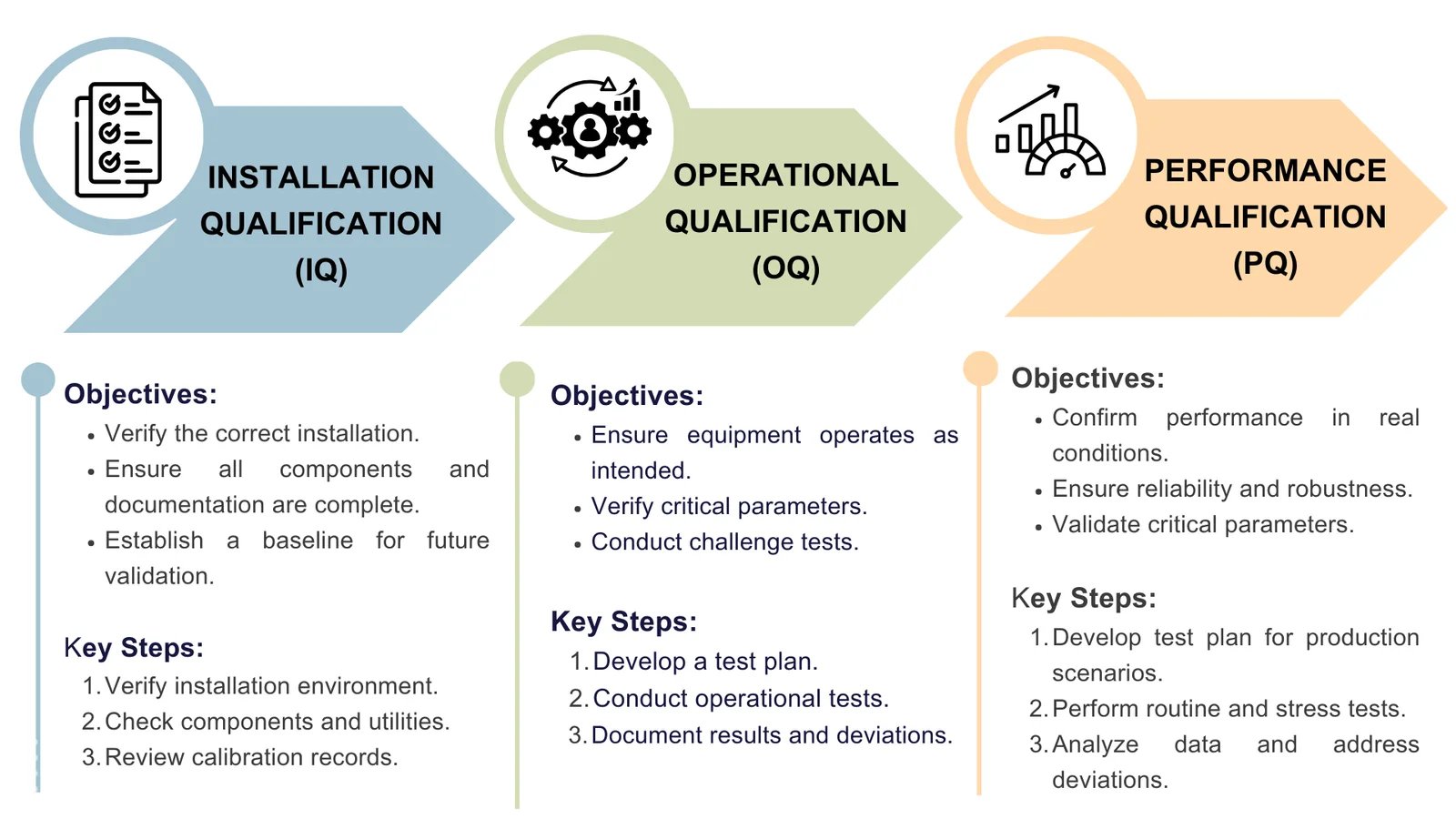

IQ vs OQ vs PQ Validation Activities

Seeing these phases laid out side-by-side makes it clear how each one builds upon the last, creating a comprehensive validation package that stands up to scrutiny.

This disciplined, multi-stage approach is the global standard for a reason. With the sterilization services market growing rapidly—valued at USD 3.16 billion and projected to hit USD 5.49 billion—the demand for rigorous, documented validation has never been higher.

For specialized methods, finding the right expertise is crucial. If you're working with heat-sensitive devices, for instance, you can learn more about finding qualified Ethylene Oxide sterilization providers to ensure your PQ is built on a strong foundation. The data you generate during IQ, OQ, and PQ forms the backbone of your regulatory submission, making deep process knowledge a non-negotiable part of the equation.

Navigating Global Regulatory Requirements

Getting the technical side of your validation right is a huge win, but it’s really only half the battle. Your meticulously crafted data package is just a pile of paper until it meets the specific, and often demanding, requirements of global regulatory bodies.

Successfully launching a medical device hinges on a solid grasp of the rules in every market you want to enter. The landscape can feel like a maze of acronyms and clauses, but it all boils down to one thing: providing clear, objective evidence that your process works and is safe. The smartest strategy is to build your validation around the most stringent requirements from the get-go. This usually means harmonizing the expectations of major players like the U.S. FDA and European authorities.

The Foundation of Compliance: International Standards

No matter where you plan to sell your device, your validation will be built on a set of internationally recognized ISO standards. These documents are the blueprints, providing the detailed framework for validating specific sterilization methods. An auditor from any agency in the world is going to expect your protocol and final report to be deeply rooted in these standards.

• ISO 17665 (Steam): This is the definitive guide for moist heat sterilization. It lays out requirements for everything from equipment performance and process definition to routine monitoring, with a heavy focus on temperature distribution and microbial kill.

• ISO 11135 (Ethylene Oxide): If you're using EO, this is your rulebook. It covers the entire process, including gas concentration, temperature, humidity, and the absolute necessity of validating aeration to get those toxic residuals down to safe levels.

• ISO 11137 (Radiation): This multi-part standard is all about sterilization by irradiation (gamma or E-beam). It outlines the methods for establishing the sterilization dose, conducting dose audits, and making sure your materials can handle the process.

Think of these standards as the universal language of sterilization validation. Following them ensures your methodology is scientifically sound and, most importantly, defensible during any regulatory review.

Comparing Key Regulatory Bodies: FDA vs. EU MDR

While ISO standards tell you how to validate, regional regulations define what you must submit and the quality system you need to maintain. The two most influential frameworks come from the United States and the European Union, and they aren't identical.

In the U.S., the FDA's requirements are spelled out in the Quality System Regulation (QSR), specifically 21 CFR Part 820. The reg is clear: any process that you can't fully verify after the fact—like sterilization—must be validated with a high degree of assurance. For the FDA, documentation is everything. They want to see detailed records of your IQ, OQ, and PQ, along with a clear rationale for every decision you made.

Across the pond, the European Medical Device Regulation (MDR - Regulation (EU) 2017/745) has definitely raised the bar. It also relies on ISO standards, but the MDR puts a much stronger emphasis on the entire lifecycle of the device. Your Notified Body will scrutinize your validation data as a key part of your technical documentation, making sure it connects directly to your overall risk management file.

A common pitfall is assuming that a validation package accepted by the FDA will automatically pass in the EU, or vice versa. While there's a lot of overlap, auditors in different regions often have unique points of emphasis. For instance, the EU has a much sharper focus on connecting validation data to your post-market surveillance activities.

Preparing Submission-Ready Documentation

Your final validation report is the culmination of all your hard work. It has to tell a clear, compelling story that guides the reviewer through your process from the initial plan to the final conclusion. Any ambiguity or missing data is an open invitation for questions and delays.

A rock-solid, submission-ready report should always include:

1. A clear reference to the validation protocol it followed.

2. Summarized results from your IQ, OQ, and PQ, including all cycle data.

3. Complete test results for all biological and chemical indicators.

4. A conclusive statement confirming the process is validated and defining the parameters for routine sterilization.

The strength of these global regulatory frameworks, especially in major markets, is what drives continuous improvement in sterilization. We see this playing out as North America leads the medical device sterilization market, valued at around USD 12.59 billion and projected to grow to nearly USD 22.76 billion. This growth is fueled by a stringent regulatory environment that pushes for higher safety standards. You can explore the full research on these market dynamics for a deeper dive.

Keeping Your Sterilization Process in a Validated State

Getting through that initial sterilization validation is a huge milestone, no doubt about it. But that’s just the starting line. The real challenge is keeping that process in a validated state for the entire life of your device. A validation report sitting on a shelf does you no good if your day-to-day process has slowly drifted out of spec.

True compliance means treating validation as a living thing. It demands constant vigilance to make sure the parameters you worked so hard to establish are being met, every single run, every single day. This is how you guarantee that the thousandth device off the line is just as sterile as the ones from your successful PQ.

The best way to manage this is with a solid routine monitoring program. Think of it as your early warning system, using a mix of indicators to catch small deviations before they snowball into big problems.

Routine Monitoring and Keeping the Process in Check

For every production run—and I mean every single one—you need to include tools that verify the cycle did its job. This isn't just a good idea; it's a fundamental requirement.

• Chemical Indicators (CIs): These are usually strips or stickers that change color when they hit the right conditions, like temperature or sterilant concentration. They’re a quick, at-a-glance confirmation that the load was exposed. A CI alone doesn't prove sterility, but it's an excellent first line of defense.

• Biological Indicators (BIs): Just like in your validation, BIs are the gold standard here. Placing a BI (often inside a process challenge device) in each load gives you direct evidence of microbial kill. A negative result from that BI is the strongest proof you have that a particular production cycle worked.

When you combine the constant data from your CIs and BIs with a regular review of the sterilizer's physical data—like temperature and pressure printouts—you build a powerful, continuous record of consistency. It’s your documented proof that you’re sticking to the principles of your initial validation.

Knowing When You Have to Revalidate

Routine monitoring is for the day-to-day, but what about when something changes? That’s when revalidation comes into play. You can't just assume a validated process will hold up after you’ve made a significant tweak. Any change that could possibly affect the sterility of your device has to trigger a formal review.

The rule of thumb is simple: if a change could make it harder to sterilize the device, you need to prove your process is still up to the task. Skipping this step is a fast track to regulatory trouble and, worse, potential patient harm.

Figuring out what counts as a "significant" change can sometimes feel like a gray area. But there are a few clear triggers that should always make you stop and assess the need to revalidate.

Red Flags That Signal a Revalidation Assessment

Here’s a practical list of changes that should immediately have you reviewing your validated state:

1. Changes to the Device Itself: Did you make a lumen longer or narrower? Switch from one polymer to another? Even a change that seems minor on the surface could completely alter sterilant penetration or radiation absorption.

2. Packaging Tweaks: Switching to a new pouch, using a different tray, or even changing the master shipping box can mess with how the sterilant gets to the device. Your packaging is part of the sterile barrier, and any modification requires a fresh look.

3. Sterilizer Updates or Repairs: Did a critical component on the sterilizer get a major repair? Did the manufacturer push a big software update? You have to confirm that the equipment still performs exactly as it did during the original qualification.

4. New Loading Configurations: If you start packing more devices into the sterilizer or arrange them differently, you might accidentally create new "cold spots" or areas the sterilant can't easily reach.

When any of these things happen, your first step is a documented impact assessment. That will tell you whether you need a full revalidation or if a smaller, partial study will suffice. For more complex situations, it can be incredibly helpful to work with experts who live and breathe this stuff. The specialists found in our directory of top-tier sterile packaging suppliers, for instance, can provide the specific guidance needed to navigate changes and stay compliant.

Answering Your Top Sterilization Validation Questions

When it comes to sterilization validation, a few questions pop up time and time again. Let's be honest, the process is complex, and getting clear, straightforward answers can feel like pulling teeth. I've been there. So, let's cut through the jargon and tackle the most common hurdles you're likely to face.

How Long Does This Actually Take?

This is the big one, and the real answer is, "it depends." But that’s not helpful, so let's get more specific. A full validation, from writing the protocol to signing off on the final report, can be anywhere from a few weeks to a few months. The sterilization method you choose is the single biggest factor.

• Radiation (Gamma/E-Beam): These are usually your fastest options. The whole process is dose-dependent, so once your bioburden is tested and the dose map is complete, you can often wrap things up in a matter of weeks.

• Steam (Autoclave): For standard devices, steam validation is also pretty efficient. You're typically looking at a four to six-week turnaround.

• Ethylene Oxide (EO): Settle in, because this one takes a while. The mandatory aeration period to off-gas residual EO is lengthy, and you still have to wait for the biological indicators to incubate. It’s not unusual for an EO validation to take 8-12 weeks, sometimes even longer.

And remember, these are best-case scenarios. A single failed cycle or a backlog at your testing lab can easily add weeks to your timeline. Always build in some buffer.

Can I Just Use an Existing Validation for My New Device?

You can't just copy and paste, but you can do something much smarter: adoption. If you have a new device that’s a close cousin to one you've already validated—think similar materials, design, and bioburden—you don't have to start from square one.

The key is to build a documented rationale, backed by comparative testing, that allows you to "adopt" the new product into an existing device family. This is way faster and cheaper than a full revalidation, but it's not a shortcut.

You still need a formal report and solid data. Your goal is to prove, without a doubt, that this new device is no harder to sterilize than the "worst-case" product you originally validated.

Overkill vs. Bioburden-Based Methods: What’s the Difference?

These are two fundamentally different philosophies for proving sterility, each with its own place.

The overkill method is exactly what it sounds like—a brute-force approach. The idea is to develop a cycle so overwhelmingly powerful that it obliterates any and all microbes, regardless of how many were there to begin with. It’s robust and simple to defend, but that intensity can sometimes be too harsh for delicate materials.

The bioburden/bioresistance method, on the other hand, is a more precise, tailored approach. First, you figure out the actual number and type of microbes on your device (the bioburden). Then you design a sterilization cycle specifically to kill that unique microbial challenge. It's a gentler process, which can be a lifesaver for sensitive polymers or electronics.
