Injection Molding Design Guidelines You Can Actually Use

Injection molding design guidelines are more than just a set of rules; they're the essential playbook for creating plastic parts that actually work. When you're making components for a medical device, "good enough" isn't an option. Following these best practices is what separates a successful, reliable part from one that causes production nightmares and costly failures down the line.

Why Strong Design Guidelines Are Your Blueprint for Success

Imagine trying to build a house without a blueprint. You might end up with four walls and a roof, but the structure would be unreliable, inefficient, and full of hidden problems just waiting to surface. That’s exactly what happens when you design a medical component without solid injection molding guidelines. In an industry where a tiny, unseen flaw can lead to serious consequences, a well-thought-out plan is non-negotiable.

This is where the concept of Design for Manufacturability (DFM) comes in. It’s a simple but powerful idea: design parts in a way that makes them easy to manufacture from the get-go. An optimized design allows molten plastic to flow smoothly into the mold, cool down at a consistent rate, and pop out cleanly. This systematic approach helps you sidestep common defects like warpage, sink marks, and weak weld lines, ensuring every single part meets the high standards required for medical use.

The Pillars of Manufacturability

At its heart, a great design is built on just a few key principles. Get these right, and you're well on your way to producing world-class medical components. We'll dive deep into each of these pillars throughout this guide, building your understanding from the ground up.

The need for precision-engineered plastic parts has never been greater. The global market for injection molded plastics was already valued at around $265 billion back in 2020, and it's been growing ever since, largely driven by demanding sectors like medical devices. For a deeper look into the industry's evolution, Xometry.com offers a great overview. Sticking to proven design principles is the single best way to avoid defects, slash rework costs, and deliver a product that stands out.

The infographic below breaks down the three most critical design pillars that directly influence the quality of the final part.

Core Principles of Medical Injection Molding Design

This table summarizes the fundamental guidelines we'll be covering. Think of it as a cheat sheet for connecting core design choices to the real-world performance of a medical device.

Each of these principles—from the material you choose to the tolerances you set—plays a vital, interconnected role in the final outcome. Mastering them is the key to creating parts that are not only easy to manufacture but also safe, effective, and ready to pass regulatory inspection. Let's get started.

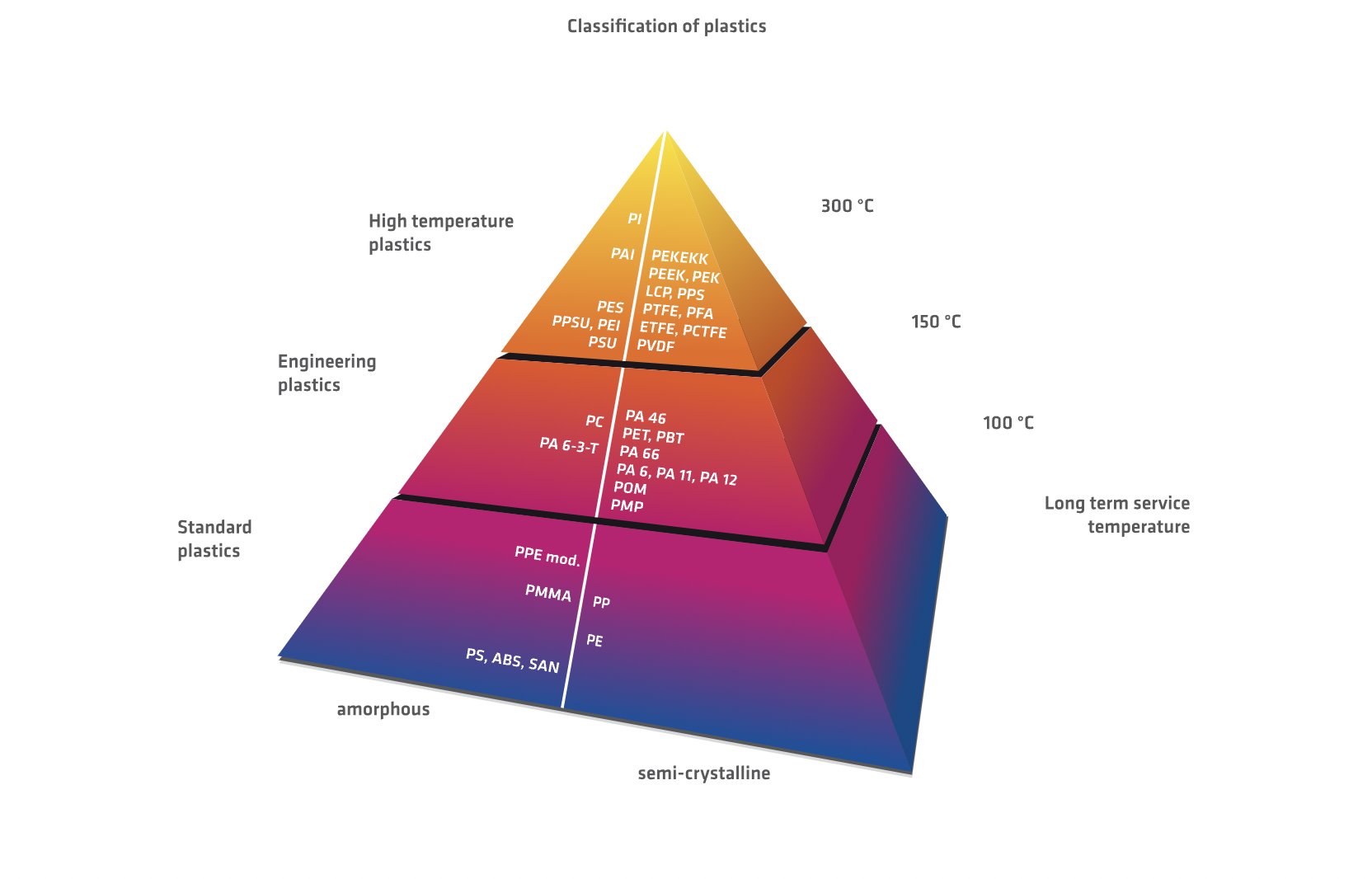

Choosing Polymers That Perform Under Pressure

Picking the right material for a medical device is a lot like casting the lead actor in a blockbuster movie. Get it wrong, and the whole production falls apart. We’re not just “choosing a plastic”; we’re matching a polymer’s specific, highly engineered properties to the unforgiving environment of a clinical setting.

This one decision dominoes into everything else—from patient safety and regulatory approval down to whether the part can even be manufactured efficiently. It's the absolute cornerstone of good injection molding design.

The first gate every material must pass is biocompatibility. Simply put, the material can't cause harm when it touches the human body. The global benchmark for this is ISO 10993, a gauntlet of tests that checks for toxicity, irritation, and other nasty reactions. Your most straightforward path to clearing this hurdle is to start with a pre-certified, medical-grade polymer from a well-known supplier.

But passing the biocompatibility test is just the beginning. The material has to survive its entire life cycle, and that almost always includes sterilization.

Surviving Sterilization

Sterilization is a brutal process, and it's non-negotiable. It can warp, discolor, or chemically break down plastics that aren't up to the task. You have to know what your part will face.

• Autoclave (Steam Sterilization): This is the classic pressure-cooker approach, using steam at temperatures often hitting 121°C (250°F). It’s a workhorse method, but only tough, high-performance polymers like PEEK, polycarbonate (PC), and polysulfone (PSU) can take that kind of heat and moisture without failing.

• Gamma Radiation: Gamma rays are incredibly effective at killing microbes, but they can make some plastics brittle and yellow. Common materials like polyethylene (PE) and polypropylene (PP) often need special additives to stabilize them against radiation damage.

• Ethylene Oxide (EtO): This low-temperature gas is a great option for heat-sensitive devices. The catch is that the polymer must be chemically resistant to the gas and allow it to fully aerate afterward so no residue is left behind.

Think about it this way: a reusable surgical tool that sees an autoclave every day needs something robust like PEEK. A single-use, disposable syringe, however, is a perfect fit for a cost-effective material like polypropylene that’s designed for gamma or EtO sterilization.

Chemical Resistance and Durability

Medical devices get doused in all sorts of chemicals—from aggressive hospital-grade disinfectants to bodily fluids. The polymer you choose has to stand its ground without cracking, swelling, or degrading over time.

Polycarbonate is a popular choice for things like IV connectors because it's both tough and crystal clear. But expose it to the wrong cleaning agent, and you can get "crazing," a network of tiny cracks that compromises its strength.

On the flip side, you have materials like liquid silicone rubber (LSR). It's incredibly flexible and chemically inert, making it perfect for seals, gaskets, or wearable biosensors that sit against the skin for long periods.

For medical devices, material selection is a balancing act. The final choice must satisfy three critical pillars: functional performance in its intended environment, manufacturability within the injection molding process, and compliance with all regulatory standards.

This is a complex puzzle, and it requires deep expertise in both polymer science and the realities of manufacturing. Working with a specialized contract manufacturer gives you direct access to engineers who’ve solved these problems hundreds of time before. If you're looking for a partner with a deep bench of experience, checking out vendors on specialized sourcing platforms like TechniMark can be a great way to vet potential experts and minimize risk.

Ultimately, the best injection molding design advice is to think holistically. The polymer isn't chosen in a vacuum. It's deeply connected to the part's shape, its wall thickness, and even the design of the mold itself. By putting biocompatibility, sterilization, and chemical durability at the top of your checklist, you're building a solid foundation for a medical device that's safe, reliable, and manufacturable.

Mastering Wall Thickness for Flawless Parts

If there's one golden rule in injection molding, it’s this: keep your wall thickness consistent.

Think of molten plastic as a river flowing into the mold. If the channel is uniform, the flow is smooth and predictable. But if that river hits abrupt, thick pools or tight, narrow rapids, you get chaos. That chaos is what causes some of the most frustrating defects in manufacturing.

When you have sudden changes in thickness, the part cools unevenly. The thicker sections stay molten long after the thinner areas have already solidified. This difference in cooling creates internal stresses that literally pull and twist the part as it solidifies, leading to serious flaws.

Why Uniform Walls Are a Must

Inconsistent wall thickness is an open invitation for problems that will absolutely compromise the integrity and look of your medical device. It's a direct cause of the most common cosmetic and structural defects.

• Sink Marks: These are the little dimples you see on the surface of a part. They almost always appear directly opposite a thick feature like a rib or a boss, because that thick section shrinks inward as it cools and pulls the finished surface down with it.

• Warpage: When one part of a component cools and shrinks faster than another, the internal stress can cause the entire part to bend or twist out of shape. For medical device components that need to fit together perfectly, warpage is a critical failure.

• Voids: Sometimes the outer skin of a thick section will cool and harden while the core is still molten. As that core finally cools and shrinks, it can pull apart from itself, creating an internal air bubble—a void—that critically weakens the part.

A well-designed part is all about managing the flow and cooling of plastic with precision. The entire goal is to create a component that solidifies uniformly, locking in its intended shape and strength without trapping hidden stresses or creating ugly surface flaws.

This is a core principle of Design for Manufacturability (DFM). To get reliable, high-quality medical parts, every single feature has to be designed with wall thickness in mind.

Strategies for Getting It Right

Of course, it's not always possible for a complex part to have perfectly uniform walls. The secret is to manage the transitions. If a change in thickness is unavoidable, it must be gradual, never sharp. A gentle, tapered transition lets the plastic flow evenly and helps sidestep the risks of uneven cooling.

So how do you add strength without creating those problematic thick sections? You have two fantastic tools at your disposal: ribs and gussets. These are the key to designing parts that are both lightweight and incredibly rigid.

Best Practices for Ribs:

Ribs are simply thin, wall-like structures that provide mechanical support. To use them without causing sink marks on the other side, just follow these simple guidelines:

• Thickness: A rib’s thickness should be between 50% and 60% of the main wall's thickness. Any more than that, and you're asking for visible sink.

• Height: To make sure the rib fills and cools properly, its height shouldn't exceed three times the main wall thickness.

• Spacing: Keep ribs spaced apart by at least twice the main wall's thickness. This gives the mold enough room to cool effectively and maintains its structural integrity.

Gussets are just triangular supports that reinforce areas like corners or bosses, and they follow similar design rules. By strategically using ribs and gussets, you can engineer a strong, functional part while keeping the main walls thin and wonderfully consistent.

Getting these techniques right is a game-changer, and working with people who live and breathe this stuff makes all the difference. For teams looking for that kind of specialized support, resources like the vendor list for injection molding specialists at Biomerics can connect you with partners who have this expertise down to a science. When you make wall consistency a priority from the start, you're building the foundation for a perfect part.

Using Draft Angles and Radii for a Perfect Ejection

Ever try to get a perfectly baked cake out of a pan with straight, vertical sides? It’s a recipe for disaster. You end up scraping and gouging, and the cake comes out in pieces. But if the pan has slightly sloped sides, the cake slides right out. That simple, brilliant concept is the secret to a clean ejection in injection molding.

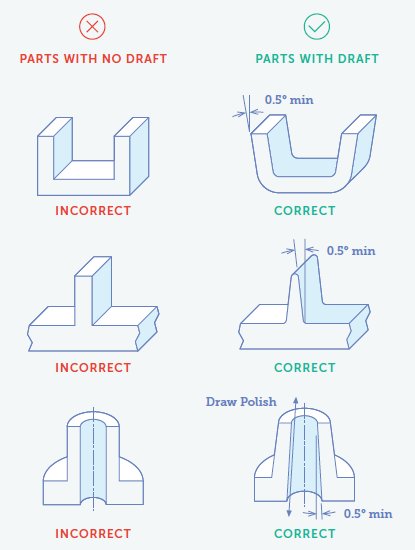

In our world, that slight slope is called a draft angle, and it’s one of the most critical, non-negotiable elements of good part design. As the hot plastic cools and solidifies in the mold, it naturally shrinks and clamps down onto the mold core. Trying to force a straight-walled part out of that mold is a high-friction battle that leads to ugly drag marks, scratches, or even a broken part.

To get that smooth, damage-free release, every surface on your part that runs parallel to the mold's opening and closing action needs that slight taper. It’s a tiny detail that makes a world of difference, reducing wear and tear on your expensive mold and preserving the cosmetic finish of your medical device.

How Much Draft Is Enough?

There’s no magic number for draft; the right angle depends on a few key factors like the material you’re using, how deep the part is, and—importantly—its surface finish. A part with a textured finish, for example, is going to need more help sliding out than a perfectly smooth one, simply because all those tiny peaks and valleys create more friction.

Here are a few solid rules of thumb to start with:

• Smooth or Polished Surfaces: For parts that don't need a specific texture, a draft of 1 to 2 degrees is usually plenty. This is pretty standard for internal components where looks aren't the top priority.

• Lightly Textured Surfaces: If you’re adding a subtle texture, like a light bead blast, you'll want to increase the draft to 3 to 5 degrees.

• Heavily Textured Surfaces: For more aggressive, deep textures like a leather grain, you might need 5 degrees or more to ensure the texture isn’t scraped right off when the part is ejected.

A great baseline to remember is to add about 1 degree of draft for every inch of cavity depth. This keeps even deep-draw parts releasing cleanly without a fight.

Why Sharp Corners Are a Design Flaw

Just as critical as draft angles are radii, or the rounded edges on a part’s corners. Sharp, 90-degree corners are a massive red flag in injection molding design, and for a couple of very good reasons.

First, molten plastic has a tough time flowing into tight, sharp corners. This can lead to voids, weak spots, or parts that aren't fully formed. Second, and arguably more important, sharp corners are stress magnets. Think about how a piece of paper tears easily from a sharp cut versus a rounded one. The same physics applies here; when a part is stressed, it will almost always fail at its sharpest corner.

By rounding out those corners with generous radii, you do two things: you help the plastic flow more easily through the mold, and you distribute stress evenly across the part. This one simple change can dramatically boost a component's strength and durability.

A good guideline is to make any inside corner radius at least 0.5 times the part’s wall thickness. For outside corners, a good target is the inside radius plus the wall thickness. Getting these small details right is fundamental to creating medical device parts that are strong, reliable, and actually manufacturable.

Designing Smarter Gate and Runner Systems

How and where molten plastic enters the mold cavity is just as critical as the part's actual geometry. Imagine filling a swimming pool. If you just toss a hose in one corner, that end fills up fast, creating weird currents and an uneven water level. But if you use several well-placed inlets, the pool fills evenly and smoothly. The exact same idea applies to gate and runner systems in injection molding.

The gate is the specific opening where plastic enters the part cavity, and the runner is the channel that gets it there. The design of these two elements dictates how the part forms, influencing everything from its final appearance to its structural integrity. In fact, poor gate placement is one of the top culprits behind defects like weld lines, which happen when two plastic fronts meet but don't properly fuse, leaving a weak spot in the final part.

Gate Location Strategy

Thinking strategically about where to place the gate is one of the most powerful tools in your design arsenal. The main goal is always to fill the mold cavity in a balanced, uniform way, pushing air out ahead of the molten plastic.

Here are a few core principles I always follow when deciding on a gate location:

• Fill from Thick to Thin: Always, always position the gate to inject plastic into the thickest section of the part first. This lets the material flow naturally into the thinner areas and ensures the thicker sections get packed out properly, which is key to preventing ugly sink marks.

• Hide the Blemish: Gates inevitably leave a small mark, or "vestige," where they're trimmed off the final part. For medical devices where aesthetics matter, placing gates on hidden or non-cosmetic surfaces is a must.

• Control Weld Lines: By choosing your gate location wisely, you can actually steer where weld lines form. This allows you to move them away from areas that will be under a lot of stress or are critical for visual appeal.

Choosing a Runner System: Hot vs. Cold

Think of the runner system as the plumbing that carries the molten plastic from the machine's nozzle to the gates. The choice between a hot and cold runner system is a major decision, impacting everything from material waste and cycle times to the overall cost of production—especially once you start making thousands of parts.

A well-designed runner and gate system is the secret to a predictable, repeatable process. It ensures every single part is filled consistently, minimizing variation and maximizing quality from the first shot to the millionth.

For high-volume production, hot runner systems are often the way to go. They work by keeping the plastic in a molten state all the way to the gate, which completely eliminates the solid runner scrap you get with cold runner systems. This not only saves a huge amount of material over the life of a project but also speeds up cycle times. The initial tooling cost is higher, no doubt, but the long-term savings can be massive. If you're exploring high-volume tooling, the team at Diel-Tech provides valuable insights on precision mold making.

Once you get past the 100,000-part mark, the conversation usually shifts toward molds made from durable tool steel with advanced features like hot-tip gates. These sophisticated molds are built to last for millions of cycles, which drives the per-part cost way down. Just be prepared for the initial lead time—fabricating a mold like this can take 4 to 6 months. For more on this, you can discover more insights about injection molding on Hubs.com.

Balancing Tolerances with Regulatory Realities

When you're designing a medical device, precision feels like everything. But in the real world, "perfect" costs a fortune. This is where we have to balance the ideal engineering drawing with the hard realities of manufacturing, budgets, and—most importantly—regulations. At the center of this balancing act are tolerances, which are simply the acceptable plus-or-minus range for any given dimension.

It's not just about making sure parts snap together correctly. Defining tolerances is about guaranteeing the device works safely and reliably every single time, all while keeping the project manufacturable. It’s a common temptation for engineers to slap incredibly tight tolerances on every single feature, but this is a classic rookie mistake that sends costs into the stratosphere. Every extra zero you add after the decimal point on a tolerance can add a shocking amount to the cost of the mold and the ongoing quality control.

The smart play is to be surgical. Apply those tight, expensive tolerances only where they are absolutely critical—think mating surfaces, fluid channels, or any feature essential to the device's core function. For everything else? Looser tolerances are your best friend. They make the part easier and cheaper to produce without sacrificing an ounce of performance.

Tolerances in medical device design aren't about achieving maximum precision everywhere. It’s a strategic negotiation. The real goal is to apply the right level of precision exactly where it matters for patient safety and device function.

Connecting Design to Compliance

For any medical device, your design choices don't just exist in a CAD file; they become a permanent part of the legal record. This is where your injection molding design decisions slam right into the wall of regulatory compliance.

Every single choice, from the plastic you select to the tolerance on a tiny rib, needs to be documented and justified. This paper trail becomes the heart of your Design History File (DHF), a living document the FDA will absolutely scrutinize during submissions and audits. A thorough Design for Manufacturability (DFM) process is your best tool here, as it naturally builds a robust DHF that proves to regulators you’ve thought through the risks and have a repeatable, reliable design.

On top of that, you have to meet the ISO 13485 standard, which governs quality management for medical devices. This standard is all about process. Your injection molding guidelines are a huge piece of that puzzle. They demonstrate that your manufacturing is controlled, validated, and can consistently pump out parts that meet every spec—including those tolerances you so carefully defined.

The Evolving Landscape of Medical Manufacturing

This industry doesn't stand still, and the best practices for injection molding are constantly adapting. For instance, automation is no longer a luxury; it's a necessity. We now see machinery with automated loading and in-process monitoring sensors that drastically cut down on defects and shave precious seconds off cycle times. At the same time, there's a big push for sustainability, leading to guidelines that now actively include bio-based polymers to create a greener manufacturing footprint. If you want to dive deeper into these trends, you can discover more insights about custom injection molding on CrescentInd.com.

Ultimately, getting tolerances right is about making informed, defensible decisions. You have to understand the interplay between material behavior, part complexity, and the quality of the steel mold to know what’s truly possible. This strategic mindset ensures your medical device isn't just a great design, but a product that is precise, manufacturable, cost-effective, and ready to clear every regulatory hurdle.

Common Questions About Injection Molding Design

Even when you follow all the design guides, real-world questions inevitably pop up. When you're designing an injection-molded medical device, you'll hit specific hurdles that can slow everything down. Let's tackle some of the most common ones engineers run into, with clear, practical answers.

How Do I Avoid Sink Marks on Cosmetic Surfaces?

Sink marks are the nemesis of a perfect, A-side finish. They're those subtle depressions that show up when a thick part of your design—usually right behind a rib or a boss—cools much slower than the material around it. As it cools, it shrinks and pulls the surface inward.

The fix really comes down to disciplined wall thickness management.

• Keep Your Ribs Thin: A rib's thickness should never be more than 50% to 60% of the wall it’s attached to. Honestly, this is the single best thing you can do to stop sink marks before they start.

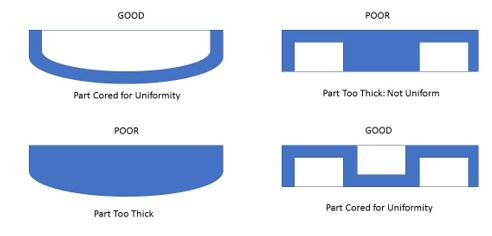

• Core Out Thick Sections: If you absolutely need a thick section for strength or function, hollow it out from the back. You can then add ribs inside the cored-out area to get the strength back while keeping the wall thickness uniform.

• Think About Your Gate Location: Placing the gate strategically allows you to pack out those thicker areas with enough pressure to counteract the natural shrinkage before the plastic fully sets.

What Is the Minimum Draft Angle I Can Use?

Look, more draft is always better. It makes getting the part out of the mold a whole lot easier. But sometimes, a design just calls for walls that are almost perfectly vertical. The absolute minimum draft you can get away with really boils down to your surface finish and the specific plastic you're using.

As a safe bet, 1 to 2 degrees is a solid minimum for most parts with a smooth, polished finish. But the moment you add texture, that number has to go up. A light texture might need 3 degrees, while a heavier, grainy finish could demand 5 degrees or more to keep the part from getting scraped up during ejection. And for deep-draw parts? Add as much draft as you can to fight that friction.

It's a simple concept at its core: the more friction a surface creates, the more draft it needs. A slick, polished surface slides right out. A rough one needs a steeper slope to help it break free cleanly.

Can Undercuts Be Avoided?

Undercuts are any feature that makes it impossible to pull a part straight out of a simple, two-part mold. They're a huge driver of tooling complexity and cost because they force you to use side-actions or lifters. While sometimes they're unavoidable, you should always, always challenge yourself to design around them.

For instance, instead of putting a hole directly on the side of a part (a classic undercut), could you get the same result with a C-shaped slot that's open to the top? This kind of "pass-through" design lets the mold create the feature without any expensive moving parts. Getting rid of undercuts is one of the fastest ways to create a more reliable and cost-effective manufacturing process. Nailing this early is a massive win for any medical device project.
