Injection Molding for Medical Devices: Expert Insights

Picture the tools that fill a modern hospital, from a humble syringe to a complex surgical instrument. It’s hard to believe many of these life-saving devices begin as simple plastic pellets, brought to life through a powerful and precise process: injection molding for medical devices. This is how the industry mass-produces sterile, reliable, and intricate medical components with near-perfect accuracy.

The Role of Injection Molding in Modern Healthcare

At its core, injection molding is the bedrock technology for a huge number of medical products. Think of it like an incredibly advanced baking mold. Molten plastic is shot into a meticulously crafted cavity, cooled, and then popped out as a perfectly formed, identical part, time after time. It's this consistency that makes the process indispensable for components where sterility and reliability are absolutely critical.

You’ll find its applications everywhere in a clinical setting. Every single day, doctors, nurses, and patients depend on devices made with this technology.

• Diagnostic Equipment: The durable, complex housings that protect sensitive electronics inside monitors and imaging machines are almost always injection molded.

• Surgical Instruments: Many single-use tools, handles, and ergonomic grips are molded from high-strength plastics that can withstand sterilization.

• Drug Delivery Systems: Parts for inhalers, insulin pens, and syringes require incredibly tight tolerances—down to the micron—to guarantee precise and safe dosing.

• Implantable Devices: While less common, certain components for implants are created from advanced, biocompatible polymers like PEEK using this same method.

This isn't just about churning out plastic parts. It's about engineering patient safety from the very first step. Everything from the purity of the raw material to the design of the mold is tightly controlled to meet strict regulatory standards and deliver flawless performance in the field.

The Growing Demand for Precision Medical Components

The need for top-tier medical devices is accelerating. This surge is fueled by a few key factors: an aging global population, constant breakthroughs in medical technology, and a major push toward single-use devices to eliminate the risk of cross-contamination.

The work starts long before a single part is molded, beginning with rigorous material selection and continuing all the way through to sterile packaging. It’s a process defined by end-to-end quality control.

The market numbers back this up. Valued at USD 7.52 billion recently, the global medical injection molding market is on track to reach USD 10.80 billion by 2031, a clear indicator of its essential role. This growth puts a spotlight on the industry's need for specialized partners who truly understand the complexities of medical device production. For any project to succeed, finding a manufacturing partner with deep expertise, like the kind demonstrated by Biomerics, is absolutely essential.

How Medical Grade Parts Are Made

Think of injection molding for medical devices as an extremely advanced, high-stakes version of making Jell-O. The goal is the same: create a perfect, identical shape over and over again. But instead of gelatin, we're using highly specialized polymers, and instead of a refrigerator, we're using immense pressure and heat. It’s a precise, four-stage dance, where every step is optimized for absolute precision and purity.

This entire process doesn't just happen on any factory floor. For medical parts, it’s often performed inside a certified cleanroom, like an ISO Class 7 or 8 facility. This isn't optional; it's a critical safeguard against contamination from dust, microbes, and any other particles that could put a patient at risk.

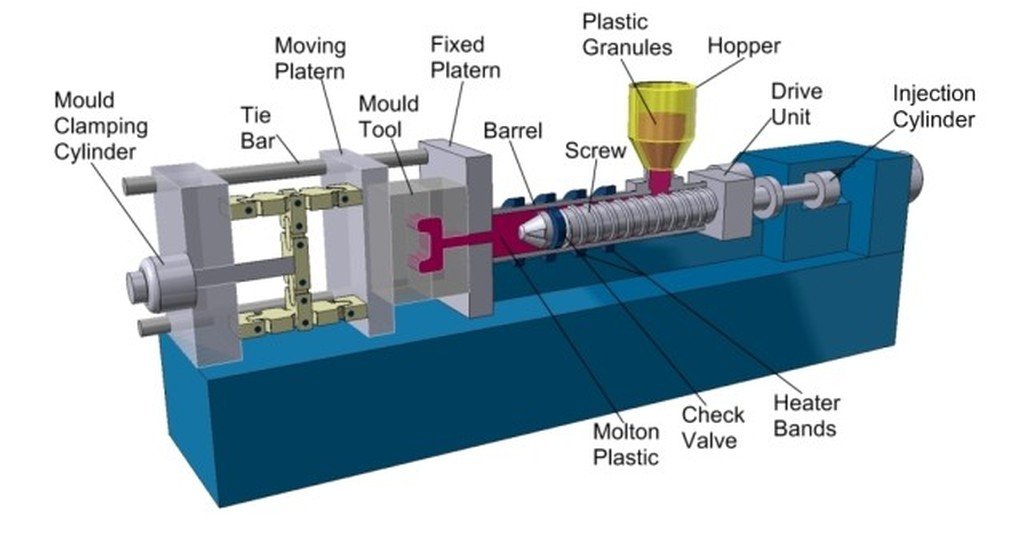

The Clamping and Injection Phases

It all starts with clamping. A powerful machine brings two halves of a meticulously machined steel mold together. This mold contains the perfect negative impression of the final component. This isn't just a simple press; the machine applies tons of force to hold the mold shut, bracing it against the incredible pressure that's about to come.

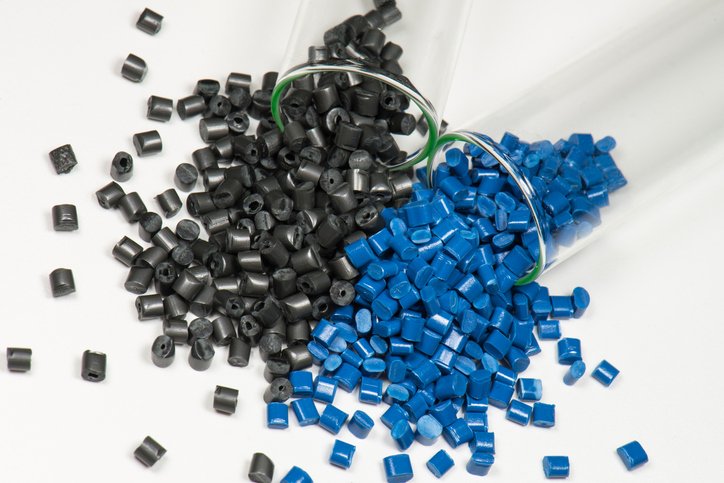

With the mold secure, the injection phase kicks off. Plastic pellets—carefully selected for biocompatibility and specific performance traits—are melted inside a heated barrel. A massive screw then forces this molten polymer into the mold cavity at an exact speed and pressure. This is where precision is everything; the flow rate determines whether the part forms perfectly or ends up with tiny, unacceptable flaws.

Cooling and Ejection The Final Steps

Once the mold is filled, the cooling phase begins. This is arguably the most important stage for locking in the part's final dimensions and structural integrity. Coolant, usually water, is pumped through channels built directly into the mold, pulling heat away from the plastic at a controlled rate.

The cooling time has to be just right. Too short, and the part could warp or shrink incorrectly when it comes out. Too long, and you're wasting valuable production time and driving up costs. This managed solidification is what gives the component its final strength and stable shape.

When it comes to medical devices, even the slightest deviation can make a part completely useless. Tolerances—the acceptable wiggle room in a part’s physical size—are often measured in microns. For something like a connector in a drug delivery system, being off by just ±0.001 inches could be the difference between a secure seal and a life-threatening failure.

After the part has fully hardened, it's time for ejection. The mold halves open, and a set of ejector pins gently push the finished component out. Often, a robotic arm will grab the part to maintain sterility and avoid any human contact. From there, the machine is ready to do it all over again, repeating a cycle that can last anywhere from a few seconds to over a minute, depending on the part's complexity.

This relentless, repeatable cycle is exactly why injection molding is the undisputed champion for mass-producing identical medical components.

Quality Control in the Molding Process

Throughout this entire four-stage process, monitoring is constant. Sensors buried within the molding machine track dozens of variables in real-time, making sure every single part is a carbon copy of the last. This meticulous oversight includes:

• Temperature Control: Keeping the melt and mold temperatures stable is essential for preventing material breakdown and ensuring dimensional consistency.

• Pressure Monitoring: Precise control over injection and holding pressures guarantees the mold fills completely without "flash" (excess plastic squeezing out of the seams).

• Cycle Time Consistency: Every cycle is timed to a fraction of a second. This ensures that the first part and the millionth part have the exact same properties.

This data-heavy approach is fundamental to medical device manufacturing. It doesn’t just build quality into the part; it also generates the critical documentation needed for regulatory approval and lot traceability, proving that every component meets the unforgiving standards of modern healthcare.

Selecting the Right Medical Grade Plastics

When you're developing a new medical device, choosing the right material is arguably the most critical decision you'll make. It’s like picking the foundation for a house—if you get it wrong, the entire structure is compromised. The same holds true for the polymers used in injection molding for medical devices; the right material directly impacts patient safety, how the device functions, and whether it clears regulatory hurdles.

This choice goes far beyond just strength or aesthetics. Medical grade plastics are sophisticated materials engineered to perform flawlessly under the demanding conditions of a clinical environment. Before a polymer can even be considered for a medical application, it has to be rigorously vetted against a very specific set of criteria.

The Three Pillars of Medical Polymer Selection

Not all plastics are created equal, especially when a patient's health is involved. For a polymer to earn the "medical grade" label, it has to deliver on three non-negotiable properties. Think of these as the gatekeepers that separate standard plastics from those fit for healthcare.

• Biocompatibility: This is the big one. The material absolutely must be able to coexist with human tissue without causing an adverse reaction, like an allergic response or toxicity. ISO 10993 is the international standard that guides how this essential trait is evaluated.

• Sterilizability: Medical devices need to be sterile, period. The plastic you choose must be tough enough to withstand common sterilization methods—like gamma irradiation, ethylene oxide (EtO), or autoclaving—without degrading, turning yellow, or losing its mechanical integrity.

• Chemical Resistance: From harsh cleaning agents to bodily fluids, medical devices are constantly exposed to aggressive substances. The material has to stand up to this chemical onslaught to prevent cracking, swelling, or breaking down over its intended lifespan.

The global market for plastic injection molding in medical devices is expected to reach USD 2.64 billion, driven largely by the soaring demand for disposable products that help minimize infection risks. The right materials are at the heart of this growth, offering a unique blend of biocompatibility, durability, and cost-effectiveness that makes safe, single-use devices a reality.

Common Polymer Families in Medical Devices

While hundreds of polymers exist, a few key families tend to dominate the medical device world because of their proven track record. Each family brings a unique profile of strength, flexibility, and temperature resistance to the table, making them a better fit for some applications than others.

Comparing Common Medical Grade Polymers

To make sense of the options, it helps to compare the most frequently used polymers side-by-side. The table below provides a quick look at how the properties of these materials align with their typical uses and sterilization compatibilities.

This at-a-glance view helps illustrate the trade-offs you have to consider during the material selection process. Let's dig a little deeper into a few of these.

Polycarbonate (PC)
Known for its fantastic clarity, toughness, and rigidity, Polycarbonate is a true workhorse material. You'll often find it in components that need to be transparent and impact-resistant, like the handles of surgical instruments, IV connectors, and equipment housings.

Polyether Ether Ketone (PEEK)
PEEK is a high-performance polymer that's prized for its incredible strength, chemical inertness, and ability to handle extreme temperatures. Its properties are so robust that it's often used to replace metal in some of the most demanding applications, including spinal fusion cages and other implantable devices.

Liquid Silicone Rubber (LSR)
When a part needs to be flexible and highly biocompatible, LSR is a top contender. Its soft, pliable nature makes it perfect for things like seals, gaskets, soft-touch grips on surgical tools, and respiratory masks. For anyone working with this material, it's worth checking out manufacturers who specialize in the nuances of LSR injection molding.

Choosing a material isn't just about a datasheet. It's a strategic decision that balances performance requirements, the manufacturing process, sterilization compatibility, and regulatory pathways. Getting this right from the start saves immense time and resources down the line.

Designing Medical Parts for Manufacturability

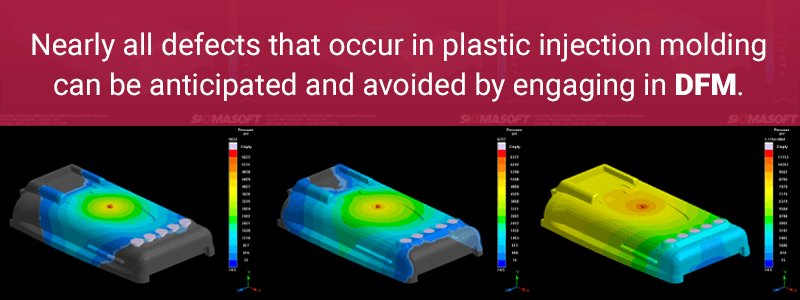

A brilliant idea for a medical device is one thing on a CAD screen, but it can quickly turn into a costly failure on the production line if it isn't designed for the real world of manufacturing. This is where Design for Manufacturability (DFM) comes in. Think of it as a practical checklist that ensures your part can be produced consistently, reliably, and without breaking the bank.

Getting DFM right early in the design phase is one of the single most effective ways to avoid expensive mold tweaks and frustrating production delays. It’s all about closing the gap between the designer’s vision and the physical constraints of injection molding for medical devices. By thinking ahead and solving potential problems before they ever hit the mold, you’re setting your project up for success.

The Critical Role of Uniform Wall Thickness

If there’s one golden rule in injection molding design, it’s this: maintain a consistent wall thickness. Imagine pouring a concrete slab where one side is a foot thick and the other is only a few inches. The thick side will take far longer to cure, creating immense internal stress that leads to cracks. Molten plastic behaves much the same way.

When you have thick and thin sections in the same part, the thin areas cool down and solidify almost instantly, while the thicker areas remain molten. As that thicker section finally cools and shrinks, it pulls on the already-hardened thin sections, leading to a host of predictable problems.

• Sink Marks: These are the tell-tale divots on the surface of a part, often appearing opposite a thick rib or boss. They happen because the core material keeps shrinking long after the outer "skin" has set.

• Warping: This is when the part twists or bows out of shape as it cools. It's a direct result of those uneven internal stresses fighting against each other.

• Voids: These are nasty little air pockets trapped inside a thick section, which can seriously compromise the part's structural integrity.

By keeping walls uniform, you allow the entire part to cool at a more even rate. This simple discipline prevents these common defects and results in a much stronger, more stable product.

Why Draft Angles Are Non-Negotiable

A draft angle is a tiny but essential taper added to the vertical walls of a part, usually somewhere between 1 to 2 degrees. It might not look like much, but it’s the secret to getting the part out of the mold cleanly.

Think about trying to pull a perfectly straight-walled glass out of a tight-fitting container—the friction and vacuum make it a struggle. But if the glass were tapered even slightly, it would pop right out. That's the exact principle behind a draft angle.

Without enough draft, the part essentially scrapes its way out of the mold during ejection. This can leave behind ugly drag marks, scratches, or even cause the part to crack. For a medical device where a pristine surface finish and structural integrity are absolutely critical, this is a deal-breaker.

Well-designed draft angles don't just protect the part; they also reduce cycle times and minimize wear and tear on the very expensive mold steel.

Strategic Gate Location and Rounded Corners

The gate is the small opening where the molten plastic is injected into the mold cavity. Deciding where to put it is a critical strategic choice that can make or break the final part. A well-placed gate helps the plastic fill the cavity smoothly and completely, preventing issues like weld lines where two flow fronts meet and create a weak bond.

Another common pitfall is designing sharp internal corners. These create what engineers call stress concentrators—they act like a focal point for any force applied to the part. It’s the same reason a small tear in a piece of paper makes it incredibly easy to rip the rest of the way.

By rounding these corners with a smooth fillet or radius, you allow stress to be distributed much more evenly. This simple design trick dramatically improves a part’s durability and its ability to withstand being dropped or handled, which is an absolute must for any real-world medical device.

Navigating Quality and Regulatory Standards

When you're making a consumer product, a small defect might earn you a one-star review. But in the world of injection molding for medical devices, that same tiny flaw could have devastating consequences. Here, quality and compliance aren't just business goals; they're the bedrock of patient safety.

This means every single component, no matter how small, has to be produced within a strict framework of globally recognized standards. For any company in the medtech space, understanding this landscape isn't just a task for the quality department—it’s essential for everyone. The rules are tough, but they exist for one crucial reason: to ensure every device is safe and effective, every single time.

The Bedrock of Medical Device Quality: ISO 13485

At the very core of medical device manufacturing, you'll find ISO 13485. Think of it as the master blueprint for a manufacturer's entire operation. This international standard lays out the requirements for a comprehensive quality management system (QMS), and it goes far beyond just inspecting the final product. It dictates how the whole organization must function to consistently deliver safe, reliable devices.

Earning an ISO 13485 certification is a powerful signal. It tells the world that a manufacturer has airtight processes in place for:

• Risk Management: Actively identifying potential hazards with a device and figuring out how to stop them before they become a problem.

• Design Controls: A structured, documented approach to product development that ensures the final device actually does what it was designed to do.

• Traceability: The ability to follow every material, component, and process from the supplier's factory to the finished product.

• Process Validation: Hard proof that a manufacturing process can consistently produce parts that meet every last specification.

This framework isn't optional for serious players. It's the key to unlocking market access in major regions like Europe, Canada, and Australia and the gold standard for demonstrating a true commitment to quality.

Understanding FDA Requirements and Process Validation

In the United States, the Food and Drug Administration (FDA) is the gatekeeper. The primary regulation to know is 21 CFR Part 820, also known as the Quality System Regulation (QSR). This is a legally binding set of rules that shares many of the same principles as ISO 13485, with an intense focus on process control and meticulous documentation.

A cornerstone of both ISO 13485 and the QSR is process validation. This isn't just about a final quality check; it's a rigorous, evidence-based journey to prove that a manufacturing line can reliably produce a perfect part. It's typically broken down into three phases: IQ, OQ, and PQ.

1. Installation Qualification (IQ): First things first. We confirm that all the equipment is installed correctly and meets the manufacturer's specifications. It’s the foundational check before anything gets made.

2. Operational Qualification (OQ): Next, we push the limits. This phase involves testing the process parameters to find the upper and lower boundaries that still result in an acceptable part. This defines our "operating window."

3. Performance Qualification (PQ): Finally, we prove it works in the real world. The process is run under normal production conditions over a sustained period to show it consistently creates parts that meet all requirements.

Process validation provides the documented evidence that a process will consistently yield a product meeting its predetermined specifications. It's the ultimate proof that quality isn't an accident but an engineered outcome.

The Non-Negotiables: Cleanrooms and Traceability

Beyond the paperwork and systems, the physical environment where parts are made is just as critical. Many medical components are molded in certified cleanrooms, often to an ISO Class 7 or 8 standard. These are highly controlled spaces with advanced air filtration that minimizes the presence of tiny contaminants like dust and microbes—absolutely essential for parts that will be implanted or come into contact with bodily fluids.

Just as important is full material traceability. A manufacturer must be able to track every single batch of plastic resin, from the raw pellet to the final packaged device. This creates a detailed logbook, or Device History Record (DHR), for every production lot. If a problem is ever discovered with a specific batch of material, this complete traceability allows for a swift, targeted recall, protecting patients from potential harm.

This level of scrutiny is becoming more important every day. The broader injection molding market, valued at USD 298.7 billion, is watching its medical segment grow at a rapid 5.9% CAGR, fueled by rising global healthcare investments. As the stakes get higher, these stringent quality systems are what separate the best from the rest. You can find more insights on these global market trends on GrandViewResearch.com.

Choosing the Right Manufacturing Partner

Picking a contract manufacturing organization (CMO) is one of the most critical decisions you'll make for your product. This goes way beyond just finding a supplier who can churn out parts. You're looking for a partner who will operate as a genuine extension of your own team. Get this right, and you'll smooth your path to market; get it wrong, and you're staring down the barrel of expensive delays, quality nightmares, and regulatory disasters.

Your evaluation has to be thorough, looking past the sticker price. The real goal is finding a partner whose skills, quality systems, and even communication style are a perfect match for what your project needs. It all starts with checking their core credentials to make sure they have the right environment for producing high-stakes medical components.

Core Vetting Criteria

Before you get too deep into conversations, you need to check off the absolute must-haves. Any potential partner has to clear a few fundamental hurdles just to be in the running.

• ISO 13485 Certification: This is your starting point, no exceptions. You need to verify their quality management system is certified to this global standard for medical devices.

• Cleanroom Facilities: Take a hard look at their cleanroom. Is it certified to the right standard for your device, like ISO Class 7 or ISO Class 8?

• Direct Experience: Ask them to prove it. Request case studies or examples of their work with your specific material, whether it’s PEEK or LSR. Making parts for a TV remote is a whole different world than making a surgical instrument.

A great manufacturing partner does more than just mold parts; they actively contribute to your success. Look for in-house engineering expertise and a transparent communication culture. They should be able to challenge your designs constructively and offer solutions, not just follow orders.

Once you’ve confirmed the basics, it's time to dig into their actual process. You can tell a lot by asking direct, operational questions. Try asking something like, "Can you walk me through your process validation protocol?" or "How do you guarantee lot-to-lot material traceability?" The quality of their answers will speak volumes about their commitment to control and quality.

For a deeper dive into vetting potential partners, exploring comprehensive supplier platforms can be a huge help. For instance, you can find a detailed overview of a full-service provider like Veranex to see what a top-tier partner's capabilities should look like.

Frequently Asked Questions

When you're diving into injection molding for medical devices, a lot of questions pop up. It's a field with its own set of rules, costs, and environmental demands. Let's tackle some of the most common questions to clear up the practical side of things and show what really makes medical manufacturing unique.

These answers get to the heart of the non-negotiable standards that keep patients safe and ensure every device works exactly as it should.

What's the Real Difference Between Medical and Standard Molding?

At a glance, it might all look like plastic parts, but the gap between standard and medical injection molding is massive. The key differences come down to three things: quality control, environment, and documentation.

Medical molding isn't just a process; it's a system. It has to take place in a certified cleanroom to prevent contamination, and it must adhere to strict standards like ISO 13485. Every step of the process is put through rigorous validation (IQ/OQ/PQ) to prove it’s repeatable and reliable. On top of that, you need total traceability for every ounce of material, from the plastic pellet all the way to the patient.

Standard molding for everyday consumer products just doesn't need that level of oversight.

The core difference isn’t just about making a plastic part; it’s about creating a component within a validated, documented system where patient safety is the primary driver of every decision.

Why Do Medical Grade Molds Cost So Much?

The price tag for a medical-grade mold can be a real eye-opener. So, what are we talking about?

Costs swing dramatically depending on how complex the part is, how many cavities the mold has, and the type of steel used. A basic, single-cavity prototype mold might run you $10,000. But for a complex, multi-cavity production mold built to last from hardened steel, you could easily be looking at costs north of $250,000.

That investment is all about precision. The mold isn't just a tool; it's a highly engineered piece of equipment designed to churn out millions of identical, perfect parts. When you're dealing with patient safety, "close enough" doesn't cut it, and tolerances can be measured in microns.

Is a Cleanroom Really Necessary for Medical Molding?

Absolutely, and here's why. A cleanroom is more than just a clean space; it's a controlled environment engineered to have virtually no contaminants like dust, microbes, or chemical vapors. This is mission-critical for medical devices, especially for anything that's implantable or comes into contact with bodily fluids.

The whole point is to eliminate any chance of contamination that could harm a patient or cause a device to fail. By using powerful HEPA filtration and following strict protocols for everything from gowning to cleaning, cleanrooms create a sterile bubble for manufacturing. This ensures every single part that comes off the line is pure and safe for clinical use.
